Product Catalog

Aerial Work & Material Handling Equipment

Explore our full range of CE-certified lifting equipment. Click any model for detailed specifications and quotation.

Self-propelled Electric Scissor Lift
Scissor Lift / Self-Propelled Electric

Self-propelled Electric Scissor Lift

Model Range FZPT0608D / FZPT0810D / FZPT1012D / FZPT1214D / FZPT1416D
Max. Working Height 8.0 – 15.8 m (26.2 – 51.8 ft)
Max. Platform Height 6.0 – 13.8 m
Rated Load Capacity 230 – 450 kg
Extended Platform Load 113 kg
Platform Size (L × W) 2.27 × 1.12 m (2.7 × 1.11 m on FZPT1416D)

The self-propelled scissor lift has an automatic walking function, with an integrated design and a built-in battery power supply. Hydraulic scissor lifts can lift and lower freely under different work...

View Details Request Quote

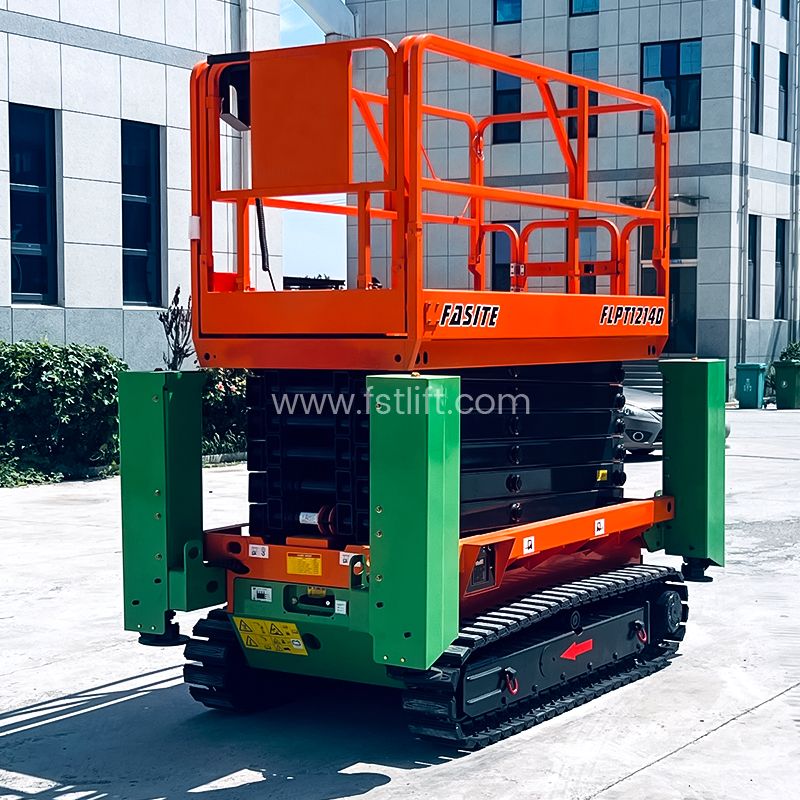

Tracked Scissor Lift (Crawler Type)
Scissor Lift / Tracked Crawler

Tracked Scissor Lift (Crawler Type)

Model Range 6m / 8m / 10m / 12m crawler scissor lift
Max. Working Height 6 – 12 m
Max. Platform Height 4 – 10 m
Rated Load Capacity 230 – 450 kg (customizable)
Drive Type Crawler track, electric motor
Power Supply Built-in battery pack

The 6m-12m crawler scissor lift is equipped with a variety of safety protection measures to prevent accidents during lifting. It is perfect for agriculture, construction, building and park maintenance...

View Details Request Quote

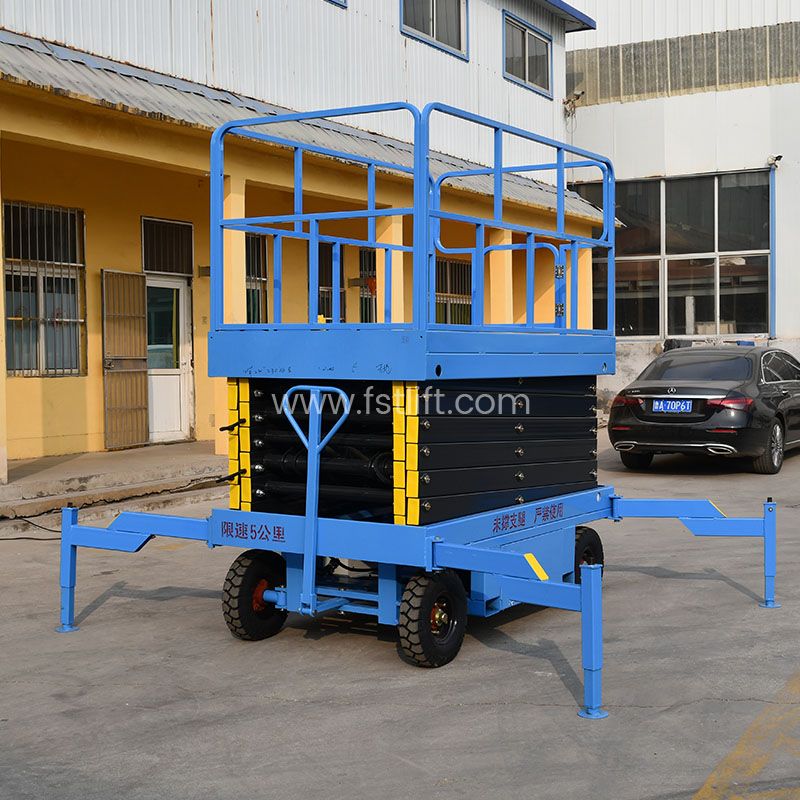

Mobile Hydraulic Scissor Lift
Scissor Lift / Mobile Hydraulic

Mobile Hydraulic Scissor Lift

Model Range FSTSJY-0.5-4 to FSTSJY-0.5-18
Max. Platform Height 4 – 18 m
Rated Load Capacity 300 – 500 kg
Platform Size 2,100 × 830 mm to 3,070 × 1,600 mm
Machine Weight 800 – 3,900 kg
Power AC 220/380 V or DC battery optional

Mobile scissor lift is a special equipment for aerial work with wide applications. Its scissor-type mechanical structure makes the lifting platform highly stable. This movable hydraulic lift makes aer...

View Details Request Quote
Diesel Articulated Boom Lift
Boom Lift / Diesel Articulated

Diesel Articulated Boom Lift

Model Range FQPT-16C / FQPT-18C / FQPT-20C / FQPT-22C / FQPT-26C / FQPT-28C
Max. Working Height 16.7 – 28 m
Max. Platform Height 14.7 – 26 m
Max. Horizontal Extension 8.1 – 17.28 m
Max. Span Height 8.25 – 10.2 m
Platform Size 1.83 × 0.76 m to 2.44 × 0.91 m

Diesel articulated boom lift is designed for specific operating environments that can withstand humid, corrosive, dusty, high- or low-temperature conditions. It is ideal for outdoor construction and i...

View Details Request Quote

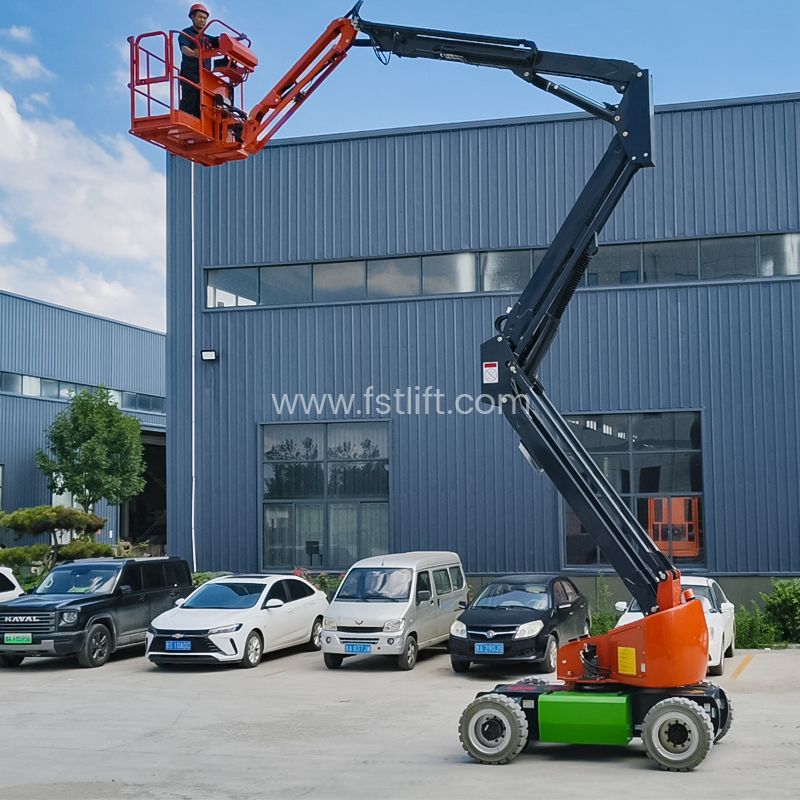

Electric Articulated Boom Lift
Boom Lift / Electric Articulated

Electric Articulated Boom Lift

Model Range FQPT-12D / FQPT-14D / FQPT-16D / FQPT-18D / FQPT-20D / FQPT-22D / FQPT-26D / FQPT-28D
Max. Working Height 12 – 28 m
Max. Platform Height 10 – 26 m
Max. Horizontal Extension 6.4 – 17.6 m
Max. Span Height 4.78 – 10.2 m
Platform Size 1.1 × 0.65 m to 2.44 × 0.91 m

Electric articulated boom lifts offer zero emissions, low noise and pinpoint accuracy for indoor and outdoor aerial work. Heights range from 12 m to 28 m with horizontal outreach up to 17.6 m. Battery...

View Details Request Quote
Single Mast Aluminum Lift
Vertical Mast Lift / Aluminum Alloy

Single Mast Aluminum Lift

Model Range GTWY4-100 / GTWY6-100 / GTWY8-100 / GTWY9-100 / GTWY10-100
Max. Platform Height 4 – 10 m
Max. Working Height 5.7 – 11.7 m
Load Capacity 100 kg
Platform Size 600 × 600 mm
Overall Dimension (L × W × H) 1,280 × 800 × 1,750 mm to 1,360 × 900 × 2,100 mm

Single mast lifts are made of high-strength aluminum alloy materials and are widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls. They can pass through gen...

View Details Request Quote

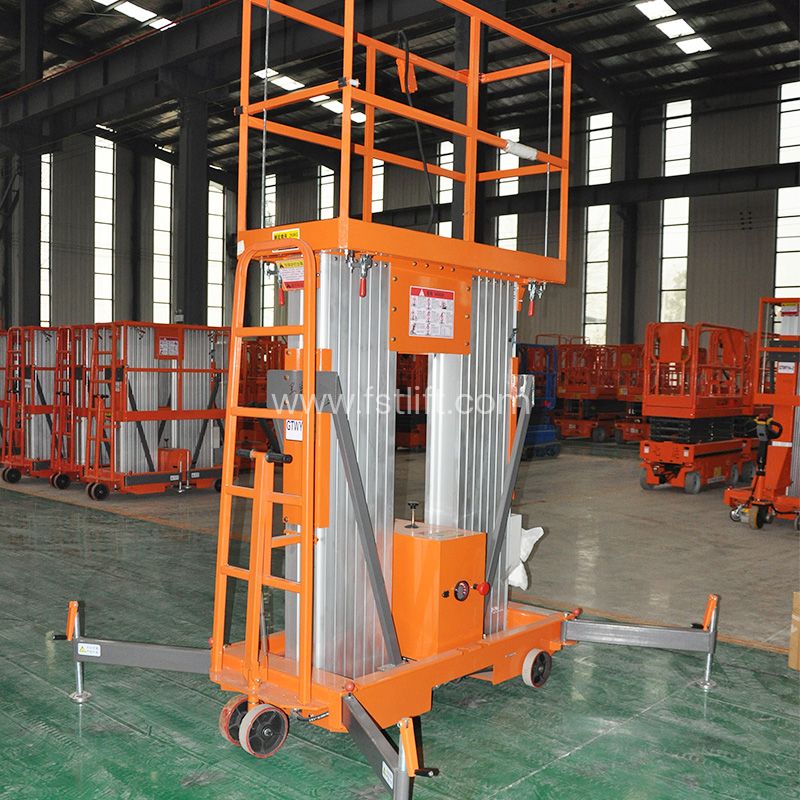

Double Mast Aluminum Lift
Vertical Mast Lift / Aluminum Alloy

Double Mast Aluminum Lift

Model Range GTWY4-200 / GTWY6-200 / GTWY8-200 / GTWY10-200 / GTWY12-200 / GTWY14-200
Max. Platform Height 4 – 14 m
Max. Working Height 5.7 – 15.7 m
Load Capacity 200 kg
Platform Size 1,100 × 600 mm to 1,450 × 600 mm
Overall Dimension (L × W × H) 1,300 × 900 × 1,750 mm to 1,660 × 1,100 × 2,350 mm

Double mast lift offers a robust solution for lifting tasks requiring higher load capacity and extended reach compared to single mast lifts. Crafted from high-strength aluminum alloy materials, it ens...

View Details Request Quote

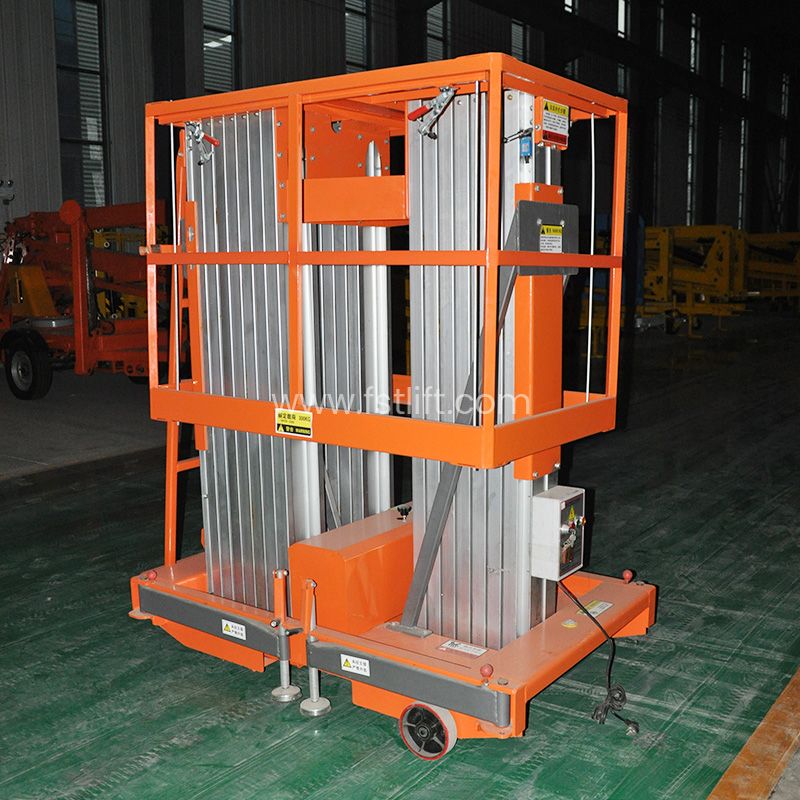

Three Mast Aluminum Lift
Vertical Mast Lift / Aluminum Alloy

Three Mast Aluminum Lift

Model Range GTWY10-320 / GTWY12-320 / GTWY14-320 / GTWY16-320
Max. Platform Height 10 – 16 m
Max. Working Height 11.7 – 17.7 m
Load Capacity 320 kg
Platform Size 1,570 × 900 mm
Overall Dimension (L × W × H) 2,100 × 1,250 × 2,000 mm to 2,100 × 1,250 × 2,650 mm

Three mast aluminum man lift is designed for stability and versatility. The triangular structure formed by its three masts ensures superior stability compared to single or dual mast lifts, making it a...

View Details Request Quote

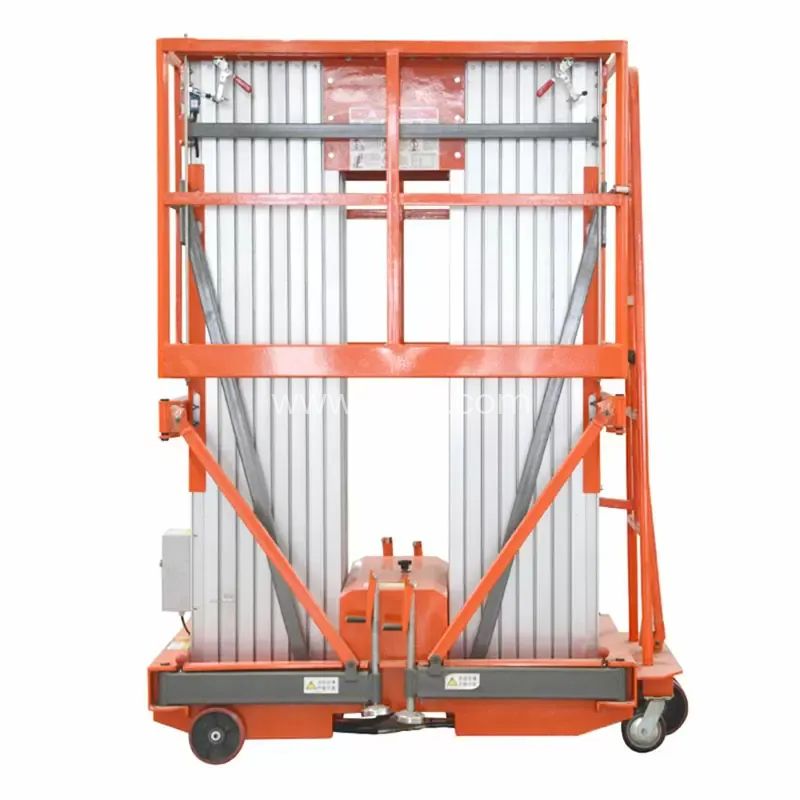

Four Mast Aluminum Lift
Vertical Mast Lift / Aluminum Alloy

Four Mast Aluminum Lift

Model Range GTWY10-420 / GTWY12-420 / GTWY14-420 / GTWY16-420 / GTWY18-420
Max. Platform Height 10 – 18 m
Max. Working Height 11.7 – 19.7 m
Load Capacity 420 kg
Platform Size 1,470 × 850 mm to 1,570 × 900 mm
Overall Dimension (L × W × H) 2,000 × 1,250 × 1,900 mm to 2,100 × 1,250 × 2,900 mm

Four mast lift is crafted from high-strength aluminum profiles for durability and stability. Its multi-mast structure enhances stability, allowing flexible operation even in confined spaces. With mini...

View Details Request Quote
Mobile Yard Ramp
Loading Equipment / Mobile Yard Ramp

Mobile Yard Ramp

Model Range FYDCQ-8T / FYDCQ-10T / FYDCQ-12T
Load Capacity 8,000 / 10,000 / 12,000 kg
Overall Dimensions 11,300 × 2,100 × 1,100 mm
Lift Range 1,100 – 1,750 mm
Power Manual hydraulic pump
Machine Weight 2,300 – 2,700 kg

Mobile yard ramp is an auxiliary equipment for cargo loading and unloading used in conjunction with forklifts. It allows forklifts and other transportation vehicles to drive directly into the truck to...

View Details Request Quote

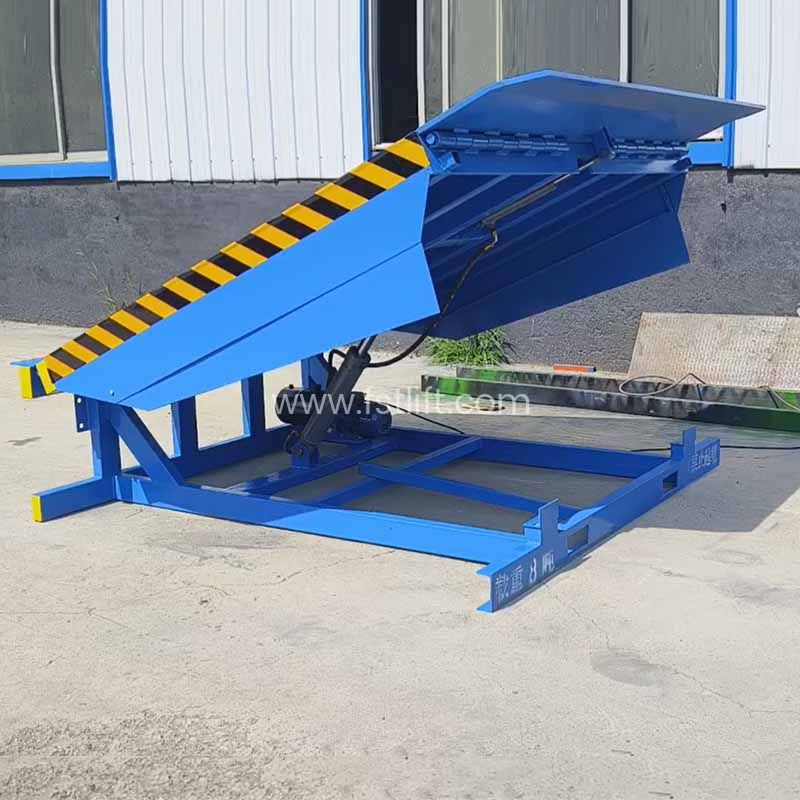

Loading Dock Leveler
Loading Equipment / Dock Leveler

Loading Dock Leveler

Model Range FGDCQ-6T / FGDCQ-8T / FGDCQ-10T
Load Capacity 6,000 / 8,000 / 10,000 kg
Platform Size 2,000 × 2,000 mm
Travel (Lip extension) 300 mm
Power 0.75 kW electric motor
Pit Size 2,080 × 2,040 × 600 mm

The loading dock leveler is an essential piece of equipment for cargo loading and unloading, commonly used in conjunction with forklifts. It allows forklifts and other transportation vehicles to drive...

View Details Request Quote
